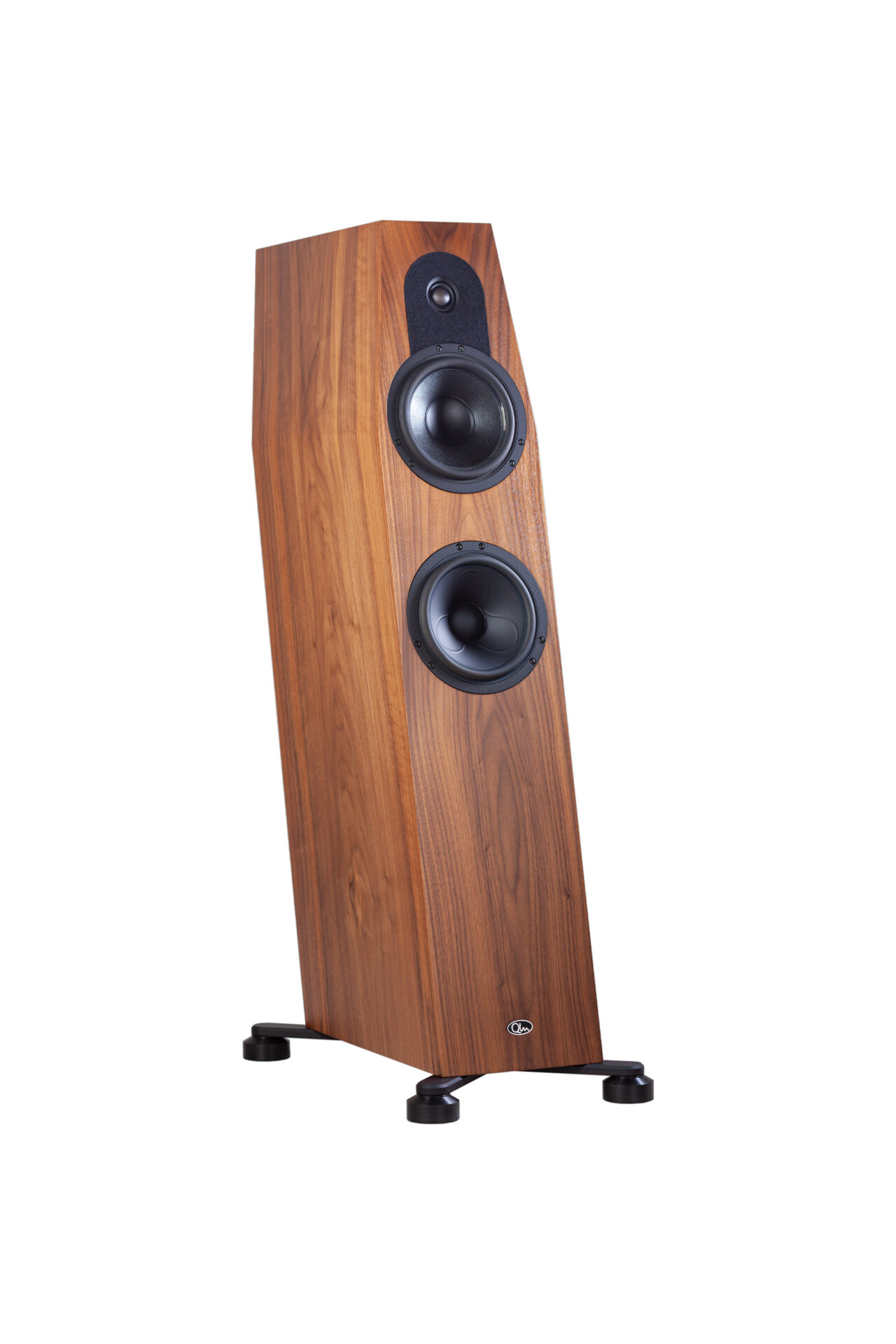

Prestige Five Gen 2
Introduction
We are pleased to introduce the next generation of Qln Prestige Five, Prestige Five Gen 2 an unprecedented 2.5-way, floor standing loudspeaker that marks the advancement and continuation our highly successful Prestige series.
Decades of design experience has proven time and time again that what separates a good loudspeaker from an exceptional one is the midrange. Prestige Five Gen 2 is a futher development of the Prestige Five. The main improvements are in Cabinet, crossover and cable. Still using the superb sounding 184mm Kevlar® mid-woofer that conveys instruments and vocals with unprecedented clarity, resolution and naturalness. We listened for 1000s of hours to woofer and tweeter to carefully balance the music spectrum and housed them in their own non-resonant and optimally-tuned enclosures.
Prestige Five Gen 2
The Prestige Five Gen 2 exemplifies a timeless combination of form, function and performance. It is the fruit of Qln’s four decades of speaker research, development, design and construction. A meticulous selection of matched components ensures every part of the speaker synergizes perfectly together. This was an extensive process involving multiple systems and genres of music over a long period of time to verify consistency. When you experience the Prestige Five Gen 2, we are highly confident that our design approach and efforts will make perfect sense to your ears.
Your ears will tell you how right we are.
Our technology
Cabinet design
Our slanted baffle provides perfect time alignment between woofer and tweeter and the truncated pyramid cabinet top with its minimized baffle area suppresses standing waves inside the cabinet as well as baffle effects which in turn improves 3D imaging. The cabinet construction is Qln’s unique Qboard®, where structural resonances are eliminated. The bass reflex port with its trumpet shape at both ends eliminates air turbulence. The Cabinet is de-coupled from the floor via solid adjustable feet with cones or pucks constructed out of hard, high damping materials.
Woofer
Our 184mm Kevlar® mid-woofer was custom developed by Qln together with industry renowned Danish driver manufacturer Scan Speak and offers the latest in 21stcentury advanced driver technology. It features an under-hung magnet system were the voice coil is in the magnet gap all the time, resulting in a totally linear motor system. Together with the extremely open basket, this allows for air flow without any compression or turbulence which offers more micro details and lowers acoustic noise typically found in standard baskets. Built-in copper rings in the magnet system offers symmetric drive and lower voice coil inductance, which results in higher dynamics in the midrange while also suppressing intermodulation distortion.
The long stroke, 184mm hard cone woofer with the same unique magnet system as the mid-woofer works harmoniously with the inner volume of both drivers to produce well-controlled, powerful bass down to 26Hz.
Tweeter
The advanced 25mm wide surround tweeter offers remarkable vocal reproduction and excellent imaging at all listening positions. Its large roll surround and textile dome diaphragm provides a flat frequency response above 30 KHz with outstanding off-axis dispersion. The unique AirCirc magnet system and its rear chamber eliminate any reflections and resonances.
Crossover
With Gen 2 version the crossover has been completely redesigned. It’s first order 6dB design this gives a smoother phase response. Phase response is more important for the sound as the time alignment compared to frequency response. The sound is more relaxed.
Crossover is hardwired with non-inductive capacitors for the tweeter part and high-end oil-filled capacitors for the woofer part with flat foil inductors used at the most critical places. All components are fastened with damping glue and remaining coils are baked to avoid any internal component and filter resonances. Resistors with high power handling capabilities offer lower noise and temperature stable performance, altogether resulting in perfect timing within the crossover and with low noise throughout the entire frequency range.
Cables, speaker connectors and internal damping.
Internal cabling is our own special design produced in Sweden. Solid pure copper cores with Teflon isolation, bounded with a high damping acoustic shield to minimize acoustic feedback. All components are carefully hand selected and individually tested for any deviances.
Speaker terminals are WBT Nextgen® connectors made of the highest grade silver plated copper with minimal copper mass for low energy storage lowering distortion and offering the purest contact to the speaker cable.
For internal acoustic damping we use real wool. Wool is the best material for internal acoustic damping but we need a small amount of syntetic fibre to get the right density.
Non-Resonant Behavior
Every part of the speaker has one thing in common – non-resonant behavior. From connectors, cables, crossover components, speaker drivers, the cabinet, and even the damping feet are all characterized by non-resonant behavior. This suppresses disruptive noise, vastly improving dynamics and preserving silence between tones as a result of the low noise floor.
Finally
The Prestige Five Gen 2 presents a more dynamic and relaxing sound with remarkable clarity. Nothing is added – just pure music!
Walnut Matte
Walnut Dark Piano
• 2,5-way fullrange speaker
• 25mm wide surround, AirCirc magnet, soft dome tweeter:
• Mid-Woofer: 184mm Kevlar® cone, under-hung magnet system
• Woofer: 184mm hard cone, under-hung magnet system
• First order crossover(6dB)
• High-end brand crossover components from leading manufactures
• Qln SP-Three pure copper solid wire acoustic shielded cable
• Sensitivity: 90 dB SPL 1 Watt 1m, 100-20kHz
• Low frequency performance: -3dB 26Hz
• Impedance: 4 ohms
• Amplifier requirements: 50-250 Watt RMS
• Terminal: Single wire, WBT Nextgen®
• Dimensions: (HxWxD): 1000x210x600mm (cabinet), 1054x315x650mm (with feet)
• Weight: 41,0 kg each
• Standard finish: Walnut matte, Walnut Dark Piano
